Borosilicate Level Gauge Glass: Tempered Glass for Boiler Level Gauges and Sight Glass Windows
Borosilicate Level Gauge Glass: Tempered Glass for Boiler Level Gauges and Sight Glass Windows
Borosilicate Level Gauge Glass is a high-temperature, chemically resistant glass used in liquid level gauges, boiler water level gauges, industrial sight glasses, level indicators, and process observation windows.
Also known as level gauge glass, boiler gauge glass, sight glass, sight glass glass, gauge glass, or level indicator glass, this type of glass is designed to provide a clear and reliable visual indication of liquid levels inside industrial equipment.
Our borosilicate level gauge glass is made from high borosilicate glass and is available in a tempered glass configuration for demanding industrial applications.
Depending on the optical design, level gauge glass can generally be divided into two main types:
● Reflex Level Gauge Glass
● Transparent Level Gauge Glass
Both types are widely used as observation windows for boilers, tanks, pressure vessels, industrial equipment, and process systems.
Jinan JSV Industrial Co., Ltd. supplies customized borosilicate level gauge glass, tempered level gauge glass, reflex gauge glass, transparent gauge glass, and industrial sight glass for international customers and equipment manufacturers.
What Is Borosilicate Level Gauge Glass?
Borosilicate Level Gauge Glass is a specially manufactured glass plate or glass component used in liquid level indication systems.
The glass is installed in a level gauge or sight glass assembly, allowing operators to visually observe the liquid level inside a vessel or process system.
High borosilicate glass is particularly suitable for level gauge applications because of its:
● Low thermal expansion
● Good thermal shock resistance
● Good chemical resistance
● High temperature resistance
● Good optical properties
● Good dimensional stability
● Suitable mechanical strength after tempering
For industrial applications, the glass may be thermally tempered to improve its resistance to mechanical and thermal stresses.
The exact temperature, pressure, chemical compatibility, and mechanical performance should be evaluated according to the specific glass grade and level gauge design.
What Is a Level Gauge Glass?
A Level Gauge Glass is the transparent glass component used in a liquid level gauge.
A level gauge is installed on equipment such as:
● Boilers
● Steam drums
● Water tanks
● Storage tanks
● Pressure vessels
● Chemical vessels
● Industrial process equipment
● Oil tanks
● Water treatment equipment
The glass allows operators to directly observe the liquid level.
For example, in a boiler system, a boiler level gauge glass allows the operator to visually monitor the water level.
This is particularly important because maintaining the correct water level can be an essential part of safe boiler operation.
Borosilicate Level Gauge Glass for Boilers
One of the most important applications of borosilicate level gauge glass is boiler water level observation.
A boiler may operate under high temperature and pressure conditions.
The level gauge glass therefore needs to withstand demanding operating conditions while providing reliable visibility of the liquid level.
A boiler level gauge glass can be used to observe:
● Boiler water level
● Steam drum water level
● Feedwater level
● Condensate level
● Process liquid level
Customers may search for this product using terms such as:
● Boiler Level Gauge Glass
● Boiler Gauge Glass
● Boiler Water Level Glass
● Boiler Sight Glass
● Boiler Sight Glass Window
● Boiler Level Indicator Glass
● High Temperature Boiler Gauge Glass
● Borosilicate Boiler Gauge Glass
● Tempered Boiler Gauge Glass
Why Is High Borosilicate Glass Used for Level Gauges?
High borosilicate glass is commonly selected for demanding sight glass and level gauge applications because of its relatively low coefficient of thermal expansion.
This characteristic provides good resistance to temperature changes and thermal shock compared with many ordinary glass materials.
Other useful characteristics include:
Low Thermal Expansion
Low thermal expansion helps reduce stress when the glass is exposed to temperature changes.
Thermal Shock Resistance
Industrial equipment may experience heating and cooling cycles. Borosilicate glass is well suited to applications requiring resistance to thermal shock.
Chemical Resistance
Borosilicate glass provides good resistance to many chemicals and process liquids.
High Temperature Performance
High borosilicate glass can be used in many elevated-temperature applications when the selected grade and design are appropriate.
Good Transparency
Transparent borosilicate glass provides good visibility of the liquid or process medium.
Tempered Borosilicate Level Gauge Glass
For industrial level gauge applications, tempered borosilicate glass can provide improved mechanical strength compared with non-tempered glass of the same material.
Thermal tempering creates compressive stress at the glass surface, improving resistance to certain types of mechanical and thermal loading.
Tempered level gauge glass can therefore be considered for applications involving:
● Temperature changes
● Mechanical stress
● Pressure-related service
● Industrial equipment
● Boiler systems
● Process vessels
The final pressure and temperature rating must always be determined according to the complete level gauge assembly, glass dimensions, mounting method, glass grade, and applicable design standards.

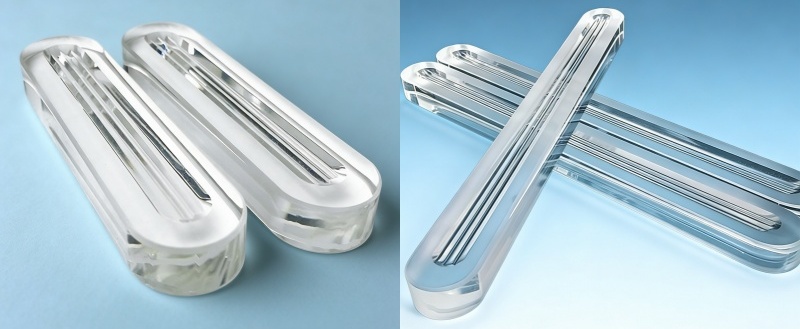

Reflex Level Gauge Glass
Reflex Level Gauge Glass is one of the two main types of level gauge glass.
A reflex gauge glass has specially designed grooves or prismatic surfaces.
When installed in a level gauge, these optical surfaces create a strong contrast between the liquid and gas or vapor areas.
This makes the liquid level easier to identify visually.
A typical reflex gauge glass can provide:
● Strong visual contrast
● Easy liquid-level identification
● Clear distinction between liquid and vapor
● Good visibility
● Suitable performance for many industrial level indicators
Reflex glass is commonly used in:
● Boiler level gauges
● Steam equipment
● Industrial tanks
● Pressure vessels
● Process equipment
● Liquid level indicators
Common search keywords include:
● Reflex Level Gauge Glass
● Reflex Gauge Glass
● Reflex Level Indicator Glass
● Reflex Boiler Gauge Glass
● Reflex Sight Glass
● Reflex Sight Glass Plate
● Borosilicate Reflex Gauge Glass
● Tempered Reflex Level Gauge Glass
How Does Reflex Level Gauge Glass Work?
The surface of a reflex gauge glass contains specially designed prismatic grooves.
The optical effect changes depending on whether the groove is in contact with liquid or vapor.
This produces a visible contrast that allows the operator to identify the liquid level.
In simple terms:
Liquid area → different optical reflection
Gas or vapor area → different optical reflection
This makes the boundary between the liquid and vapor visually apparent.
Reflex level gauge glass is therefore particularly useful when the main requirement is quick and clear liquid-level indication.
Transparent Level Gauge Glass
The second major type is Transparent Level Gauge Glass.
Unlike reflex glass, transparent gauge glass generally has a flat, transparent surface without the same prismatic reflex pattern.
It allows the operator to directly observe the process medium through the glass.
Transparent gauge glass can be used when the operator needs to see:
● Liquid level
● Liquid color
● Liquid condition
● Interface between different liquids
● Flow condition
● Process medium
This makes transparent level gauge glass particularly useful for applications where more detailed visual observation is required.
Common search terms include:
● Transparent Level Gauge Glass
● Transparent Gauge Glass
● Transparent Level Indicator Glass
● Transparent Boiler Gauge Glass
● Transparent Sight Glass
● Transparent Sight Glass Plate
● Borosilicate Transparent Gauge Glass
● Tempered Transparent Gauge Glass
Reflex Gauge Glass vs. Transparent Gauge Glass
The main difference is the optical design and viewing purpose.
Feature | Reflex Level Gauge Glass | Transparent Level Gauge Glass |
Surface design | Prismatic / grooved | Flat / transparent |
Main purpose | Clear liquid-level indication | Direct visual observation |
Level contrast | High visual contrast | Direct observation |
Liquid appearance | Limited | Better visibility |
Typical application | Boiler and industrial level gauges | Process observation and level monitoring |
Optical principle | Reflection/refraction | Direct transmission |
The correct type depends on the equipment design and the customer’s observation requirements.
Level Gauge Glass as a Sight Glass
In many industries, customers may refer to level gauge glass simply as sight glass.
A sight glass is a transparent component that allows operators to observe a process, liquid, gas, or equipment condition.
Therefore, the same customer may search for:
● Sight Glass
● Sight Glass Window
● Sight Glass Plate
● Industrial Sight Glass
● Boiler Sight Glass
● Process Sight Glass
● Liquid Level Sight Glass
● Level Indicator Sight Glass
● Borosilicate Sight Glass
The exact meaning of “sight glass” can vary according to the application.
For liquid-level applications, the more specific term level gauge glass or level indicator glass is generally more precise.
Borosilicate Sight Glass for Industrial Equipment
Borosilicate sight glass can be used as an observation window in industrial equipment.
Potential applications include:
● Boilers
● Pressure vessels
● Storage tanks
● Chemical reactors
● Process pipelines
● Water treatment systems
● Steam systems
● Oil processing equipment
● Chemical processing equipment
● Industrial machinery
The glass allows operators to visually inspect the process without opening the equipment.
Sight Glass Window for Process Observation
A sight glass window is commonly used when an operator needs to visually observe the inside of industrial equipment.
Depending on the design, the observation window can be used to inspect:
● Liquid level
● Liquid color
● Flow
● Material movement
● Process condition
● Gas-liquid interface
● Reaction condition
Borosilicate glass is a useful material for many sight glass applications because of its thermal and chemical properties.
Customers may search for:
● Sight Glass Window
● Industrial Sight Glass Window
● Process Sight Glass Window
● Borosilicate Sight Glass Window
● High Temperature Sight Glass
● Tempered Sight Glass Window
● Boiler Sight Glass Window
● Tank Sight Glass Window
Borosilicate Level Gauge Glass for Pressure Vessels
Pressure vessels may require sight glasses or level indicators to allow operators to monitor internal conditions.
Depending on the equipment design, borosilicate gauge glass may be used for:
● Liquid level indication
● Process observation
● Flow observation
● Interface monitoring
The glass selection must consider:
● Operating pressure
● Operating temperature
● Thermal cycling
● Chemical medium
● Glass dimensions
● Mounting system
● Gasket material
● Safety requirements
The pressure rating should be determined for the complete sight glass or level gauge assembly rather than the glass alone.
Chemical Resistance of Borosilicate Level Gauge Glass
Borosilicate glass provides good resistance to many chemicals, making it suitable for various industrial processes.
Potential applications include:
● Chemical processing
● Water treatment
● Pharmaceutical processing
● Food processing
● Laboratory equipment
● Industrial process monitoring
However, glass is not universally resistant to every chemical.
For example, strong alkaline solutions and certain aggressive chemicals can attack glass under specific conditions.
Therefore, customers should provide the actual process medium, concentration, temperature, and exposure conditions when selecting the glass.
Level Gauge Glass for Steam and Hot Water
Borosilicate level gauge glass is widely considered for applications involving:
● Steam
● Hot water
● Heated liquids
● Boiler water
● Condensate
● Process fluids
Its low thermal expansion and good thermal shock resistance make high borosilicate glass suitable for many thermal applications.
For high-pressure steam and boiler applications, the complete level gauge system must be correctly designed and rated for the operating conditions.
Level Gauge Glass Dimensions and Specifications
Different level gauges require different glass dimensions.
Typical specifications include:
Length
Common lengths vary according to the gauge design and equipment requirements.
Width
The width must match the level gauge body and sealing system.
Thickness
Glass thickness is selected according to:
● Operating pressure
● Mechanical requirements
● Gauge design
● Mounting method
Edge Processing
The edges may be processed by:
● Grinding
● Polishing
● Fine grinding
● Chamfering
● Special edge processing
Proper edge processing can help improve handling and assembly.
Customized Borosilicate Level Gauge Glass
Jinan JSV Industrial Co., Ltd. supplies customized borosilicate level gauge glass according to customer drawings, samples, dimensions, and application requirements.
Customization may include:
● Length
● Width
● Thickness
● Hole position
● Hole diameter
● Edge shape
● Edge processing
● Reflex groove design
● Transparent design
● Surface finish
● Tempering
● Packaging
Customers can provide an original glass sample or technical drawing for evaluation.
Borosilicate Level Gauge Glass Manufacturer in China
International buyers may search for this product using different terms.
A boiler manufacturer may search for:
Boiler Level Gauge Glass Manufacturer China
A level gauge manufacturer may search for:
Borosilicate Level Gauge Glass Supplier China
An industrial equipment manufacturer may search for:
Tempered Level Gauge Glass Manufacturer China
A customer familiar with the optical design may search for:
Reflex Gauge Glass Manufacturer China
Another customer may search for:
Transparent Level Gauge Glass Supplier China
Customers looking for a general industrial observation window may simply search for:
Borosilicate Sight Glass Manufacturer China
Jinan JSV Industrial Co., Ltd. supplies borosilicate level gauge glass, tempered level gauge glass, reflex gauge glass, transparent gauge glass, and industrial sight glass for international equipment manufacturers and industrial customers.
Customized glass components can be evaluated according to drawings, samples, dimensions, operating temperature, pressure, and application requirements.
Applications of Borosilicate Level Gauge Glass
Borosilicate level gauge glass can be used in many industries and equipment types.
Boiler Systems
For visual monitoring of boiler water levels.
Steam Equipment
For observing liquid levels in steam-related equipment.
Pressure Vessels
For liquid-level monitoring and process observation.
Storage Tanks
For monitoring liquid levels inside industrial tanks.
Chemical Equipment
For observing process liquids in chemical systems.
Water Treatment Equipment
For monitoring water levels and process conditions.
Oil and Gas Equipment
For selected liquid-level and process observation applications.
Pharmaceutical Equipment
For process monitoring where suitable glass and sanitary design requirements are met.
Food Processing Equipment
For process observation where appropriate sanitary and material requirements are satisfied.
Industrial Process Equipment
For monitoring liquid levels and process conditions.
How to Choose the Right Level Gauge Glass
When selecting a level gauge glass, several factors should be considered.
1. Reflex or Transparent
First determine whether the application requires:
● Reflex level gauge glass
● Transparent level gauge glass
2. Glass Material
Confirm the required glass type, such as high borosilicate glass.
3. Tempering
For demanding industrial applications, determine whether tempered glass is required.
4. Operating Temperature
Provide the normal and maximum operating temperature.
5. Operating Pressure
Provide the working pressure and design pressure of the equipment.
6. Process Medium
Specify whether the glass will contact:
● Water
● Steam
● Oil
● Chemicals
● Gas
● Other process fluids
7. Dimensions
Provide:
● Length
● Width
● Thickness
● Holes
● Edge configuration
● Tolerances
8. Gauge Model
If the glass is being purchased as a replacement, providing the original gauge model or glass sample can make identification easier.
Common Search Keywords for Borosilicate Level Gauge Glass
Main Product Keywords
● Borosilicate Level Gauge Glass
● Borosilicate Level Gauge Glass Manufacturer
● Borosilicate Level Gauge Glass Supplier
● Borosilicate Gauge Glass
● Borosilicate Gauge Glass Plate
● High Borosilicate Level Gauge Glass
● Tempered Borosilicate Level Gauge Glass
● Tempered Level Gauge Glass
● Level Gauge Glass
● Level Gauge Glass Plate
● Level Indicator Glass
● Liquid Level Gauge Glass
Boiler Keywords
● Boiler Level Gauge Glass
● Boiler Gauge Glass
● Boiler Water Level Glass
● Boiler Sight Glass
● Boiler Sight Glass Window
● Boiler Level Indicator Glass
● Boiler Water Gauge Glass
● Borosilicate Boiler Gauge Glass
● Tempered Boiler Gauge Glass
● Boiler Gauge Glass Manufacturer
● Boiler Gauge Glass Supplier
Reflex Keywords
● Reflex Level Gauge Glass
● Reflex Gauge Glass
● Reflex Gauge Glass Plate
● Reflex Level Indicator Glass
● Reflex Boiler Gauge Glass
● Reflex Sight Glass
● Reflex Sight Glass Plate
● Borosilicate Reflex Gauge Glass
● Tempered Reflex Gauge Glass
● Reflex Level Gauge Glass Manufacturer
● Reflex Gauge Glass Supplier
Transparent Keywords
● Transparent Level Gauge Glass
● Transparent Gauge Glass
● Transparent Gauge Glass Plate
● Transparent Level Indicator Glass
● Transparent Boiler Gauge Glass
● Transparent Sight Glass
● Transparent Sight Glass Plate
● Borosilicate Transparent Gauge Glass
● Tempered Transparent Gauge Glass
● Transparent Level Gauge Glass Manufacturer
● Transparent Gauge Glass Supplier
Sight Glass Keywords
● Sight Glass
● Industrial Sight Glass
● Borosilicate Sight Glass
● Tempered Sight Glass
● Sight Glass Window
● Sight Glass Plate
● Industrial Sight Glass Window
● Process Sight Glass
● Process Sight Glass Window
● Liquid Level Sight Glass
● Level Indicator Sight Glass
● Boiler Sight Glass
● Tank Sight Glass
● High Temperature Sight Glass
● Borosilicate Sight Glass Window
Application Keywords
● Liquid Level Observation Glass
● Liquid Level Indicator Glass
● Boiler Water Level Observation Glass
● Boiler Observation Window
● Industrial Observation Glass
● Process Observation Window
● Industrial Sight Window
● Tank Observation Window
● Pressure Vessel Sight Glass
● High Temperature Observation Glass
● Steam Sight Glass
● Hot Water Level Gauge Glass
Manufacturer and Supplier Keywords
● Borosilicate Level Gauge Glass Manufacturer China
● Borosilicate Level Gauge Glass Supplier China
● Level Gauge Glass Manufacturer China
● Level Gauge Glass Supplier China
● Tempered Level Gauge Glass Manufacturer China
● Tempered Level Gauge Glass Supplier China
● Boiler Level Gauge Glass Manufacturer China
● Boiler Gauge Glass Supplier China
● Reflex Gauge Glass Manufacturer China
● Reflex Gauge Glass Supplier China
● Transparent Level Gauge Glass Manufacturer China
● Transparent Gauge Glass Supplier China
● Borosilicate Sight Glass Manufacturer China
● Borosilicate Sight Glass Supplier China
● Industrial Sight Glass Manufacturer China
● Industrial Sight Glass Supplier China
● Custom Level Gauge Glass Manufacturer China
● OEM Level Gauge Glass Supplier China
Frequently Asked Questions
What is Borosilicate Level Gauge Glass?
Borosilicate Level Gauge Glass is a high borosilicate glass component used in liquid level gauges, boiler water level gauges, industrial sight glasses, and process observation windows.
What is Boiler Level Gauge Glass used for?
Boiler Level Gauge Glass is used to visually observe the water level inside a boiler or related steam equipment.
Is Level Gauge Glass tempered?
Industrial level gauge glass can be supplied as tempered glass when required by the application and product design. The exact tempering requirements depend on the glass specification and level gauge assembly.
What is Reflex Level Gauge Glass?
Reflex Level Gauge Glass has specially designed prismatic grooves that create a strong visual contrast between the liquid and vapor areas, making the liquid level easier to identify.
What is Transparent Level Gauge Glass?
Transparent Level Gauge Glass has a transparent viewing surface that allows the operator to directly observe the liquid and, depending on the design, its color and condition.
What is the difference between Reflex and Transparent Gauge Glass?
Reflex glass uses an optical prism or groove structure to improve liquid-level contrast. Transparent glass provides direct viewing through a flat transparent surface and can provide more information about the process medium.
Is Level Gauge Glass the same as Sight Glass?
They can overlap in terminology. A level gauge glass is specifically intended for liquid-level indication, while sight glass is a broader term for glass used to visually observe a process, liquid, gas, or equipment interior.
Can Borosilicate Level Gauge Glass be used for boilers?
Yes. High borosilicate glass is commonly used for demanding thermal applications, including boiler and steam-related level observation systems, when the glass and complete gauge assembly are properly designed for the operating conditions.
Can you supply custom Level Gauge Glass?
Yes. Jinan JSV Industrial Co., Ltd. can evaluate customized level gauge glass according to drawings, samples, dimensions, glass type, thickness, edge processing, reflex design, tempering requirements, and application conditions.
Can you supply replacement Sight Glass?
Yes. Customers can provide the original glass sample, drawing, dimensions, equipment model, or photos with measurements for evaluation of replacement sight glass.
What information is needed to quote Level Gauge Glass?
Useful information includes:
● Glass type
● Reflex or transparent design
● Length
● Width
● Thickness
● Hole dimensions
● Edge processing
● Tempering requirements
● Operating temperature
● Operating pressure
● Process medium
● Quantity
● Original sample or drawing
Conclusion
Borosilicate Level Gauge Glass is a specialized high-temperature glass component used for liquid-level indication and process observation.
It is widely associated with:
● Boiler Level Gauge Glass
● Boiler Water Level Glass
● Reflex Level Gauge Glass
● Transparent Level Gauge Glass
● Borosilicate Gauge Glass
● Tempered Level Gauge Glass
● Industrial Sight Glass
● Sight Glass Window
● Liquid Level Sight Glass
● Process Observation Glass
The two major types are Reflex Level Gauge Glass and Transparent Level Gauge Glass.
Reflex glass provides strong optical contrast for quick liquid-level identification, while transparent glass allows more direct observation of the liquid and process medium.
For international buyers searching for a Borosilicate Level Gauge Glass Manufacturer, Boiler Gauge Glass Supplier, Reflex Gauge Glass Manufacturer, Transparent Level Gauge Glass Supplier, or Industrial Sight Glass Manufacturer in China, Jinan JSV Industrial Co., Ltd. supplies customized tempered borosilicate glass according to customer drawings, samples, dimensions, and application requirements.
For OEM and replacement projects, customers can provide the original glass sample, technical drawing, gauge model, dimensions, operating temperature, operating pressure, and process medium for product evaluation.
